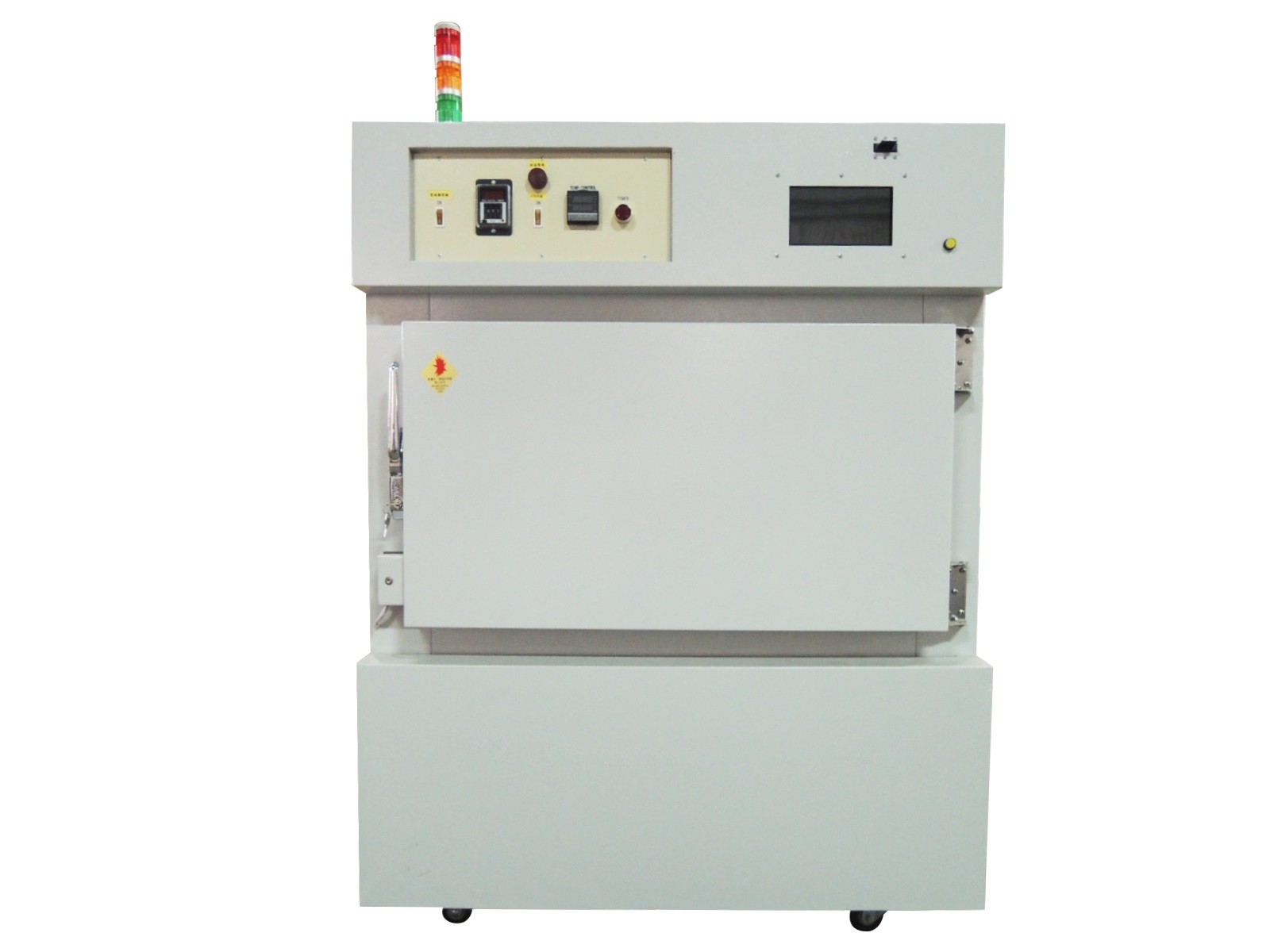

This custom system provides COB product Panel or Module LIV testing

i. Standard or customized substrate

ii. Standard or customized oven RT+25C~150C

iii. Provide multi-channel 3.3V power supply: programmable switch and current monitoring

iv. Provide I2C and I/O control: Custom control Panel DUT/Module and monitor DDMI parameters

v. Customized control of LD current of COB DUT products and measurement of optical power for LIV testing purposes

vi. Customized jigs: Design compatible with client's DUT type (w/wo lens, form factor, DUT#...)

vii. Standard or customized programs
